Drawer Systems & Runners Ireland | Cemux A box & H box

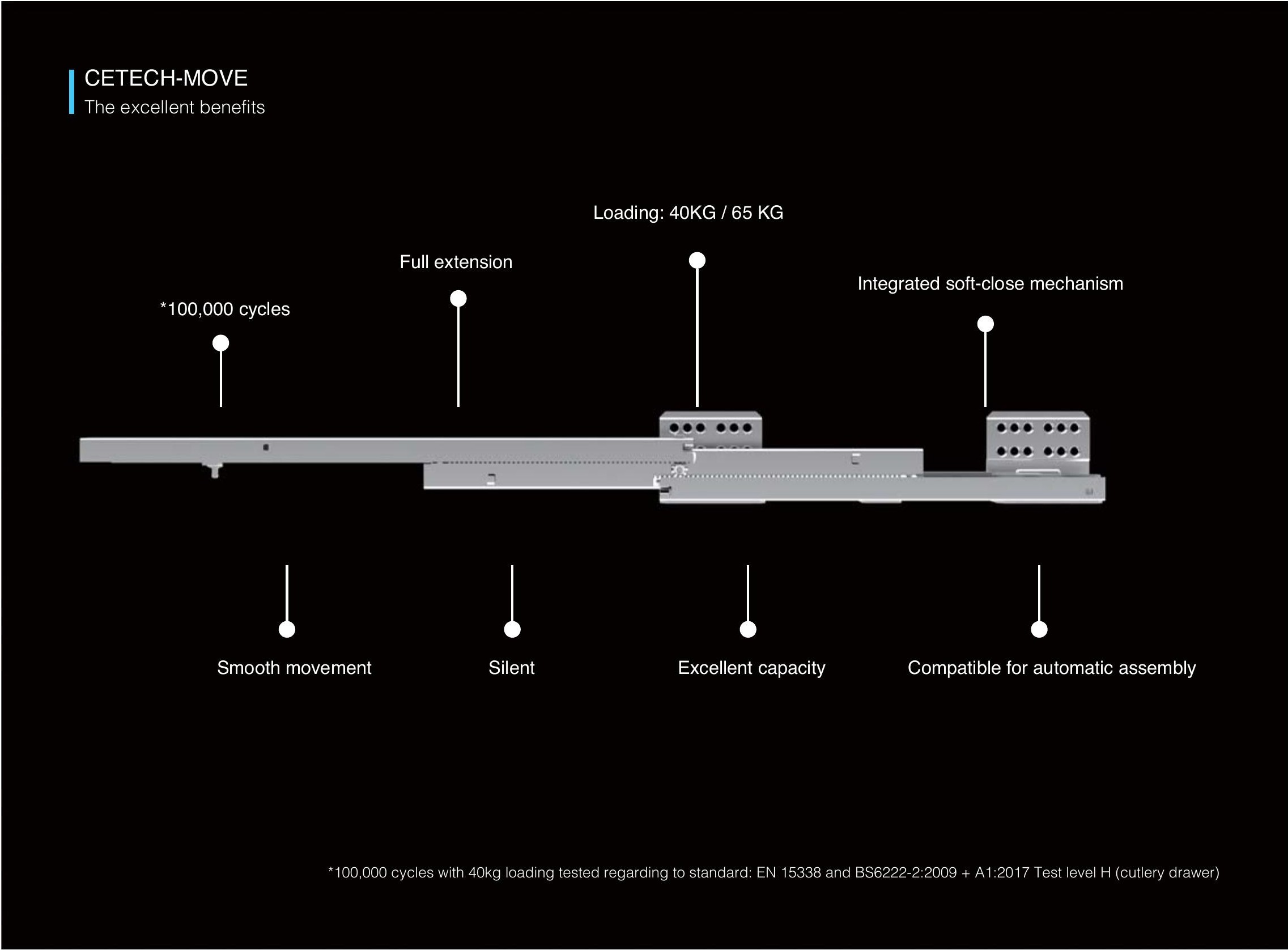

Cetech-Move · the excellent benefits

A drawer runner built for 100,000 openings

Light Hardware Supplies stocks the Cemux drawer range in Ireland: soft-close, full-extension drawers on the Cetech-Move runner, rated to 40 kg (65 kg version available) and tested to 100,000 cycles at 40 kg to EN 15338 and BS6222-2:2009 + A1:2017 level H. The range carries the LGA Qualitäts-Zertifikat (ID 1111227769).

40 kg / 65 kg loading
Excellent capacity
Full extension
Smooth movement to the back of the drawer
Integrated soft-close
Silent, controlled closing
100,000 cycles
Compatible with automatic assembly

100,000

cycles tested at 40 kg — cutlery drawer level H.

The product range

Find any drawer SKU in seconds

Filter by system or type any item number, size or feature. Flip between the drawer and the parts in each set — a dash means that size or colour is not stocked.

37 products shown

A box

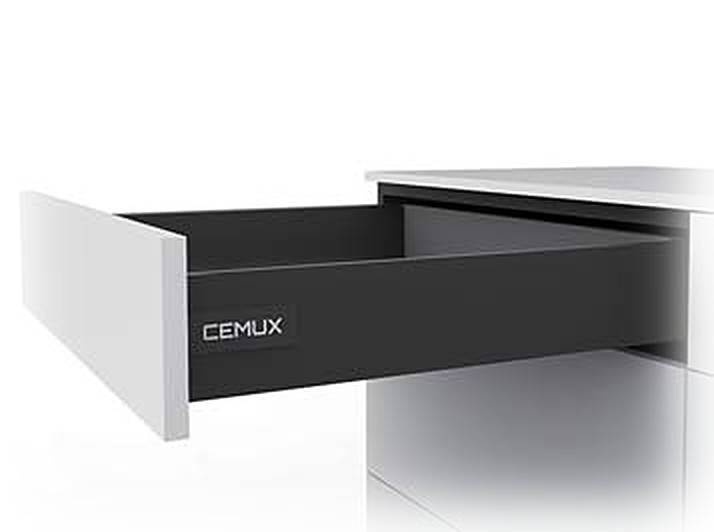

Contempo drawer side H84 · A3201

Contempo wall
Soft-close
Full extension
84 mm drawer height

5 more specs

±2 mm up & down adjustment
±1.5 mm left & right adjustment
Length from 270–550 mm
100,000 cycles at 40 kg loading
Loading capacity 40 kg

Order information for Contempo drawer side H84 (A3201)
NL (mm)	White	Grey	Package
270	–	A3201-270G	6 sets
300	–	A3201-300G	6 sets
350	–	A3201-350G	6 sets
400	–	A3201-400G	6 sets
450	–	A3201-450G	6 sets
500	–	A3201-500G	6 sets
550	–	–	6 sets

A box

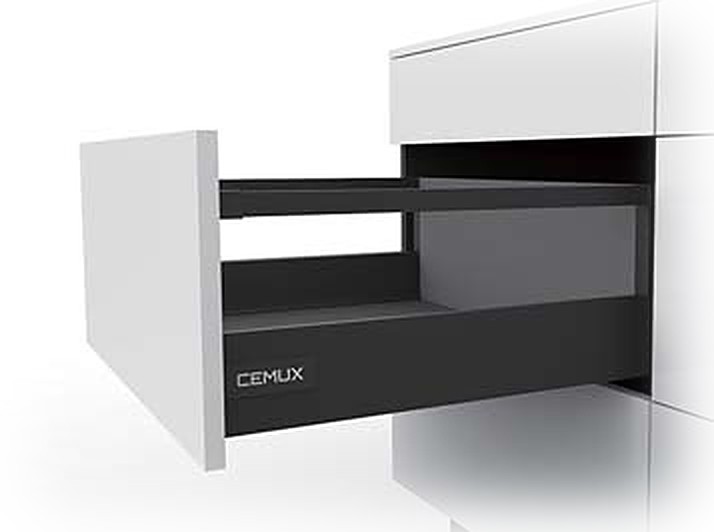

Contempo drawer side with square rail H199 · A3204

Contempo wall
Soft-close
Full extension
199 mm drawer height

5 more specs

±2 mm up & down adjustment
±1.5 mm left & right adjustment
Length from 270–550 mm
100,000 cycles at 40 kg loading
Loading capacity 40 kg

Order information for Contempo drawer side with square rail H199 (A3204)
NL (mm)	White	Grey	Package
270	–	–	6 sets
300	–	–	6 sets
350	–	–	6 sets
400	–	–	6 sets
450	–	A3204-450G	6 sets
500	–	A3204-500G	6 sets
550	–	–	6 sets

A box

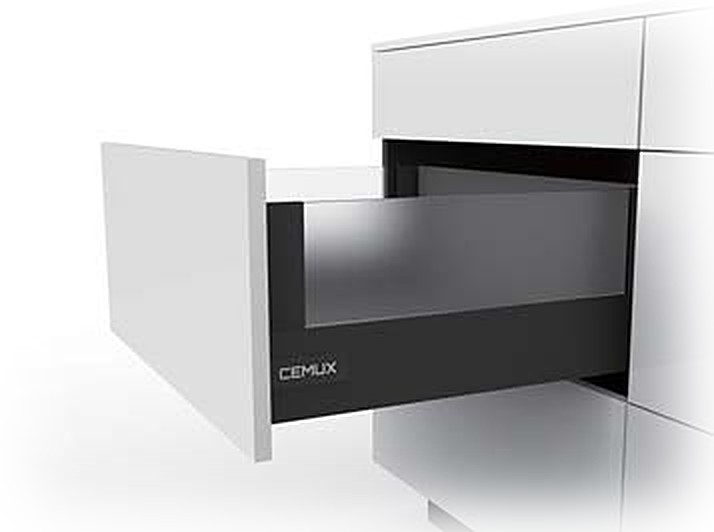

Contempo drawer side with glass panel H199 · A3244

Contempo wall
Soft-close
Full extension
199 mm drawer height

5 more specs

±2 mm up & down adjustment
±1.5 mm left & right adjustment
Length from 350–550 mm
100,000 cycles at 40 kg loading
Loading capacity 40 kg

Order information for Contempo drawer side with glass panel H199 (A3244)
NL (mm)	White (frosted)	Grey (frosted)	Package
270	–	–	6 sets
300	–	–	6 sets
350	–	–	6 sets
400	–	–	6 sets
450	–	A3244-450GF	6 sets
500	–	A3244-500GF	6 sets
550	–	–	6 sets

H box

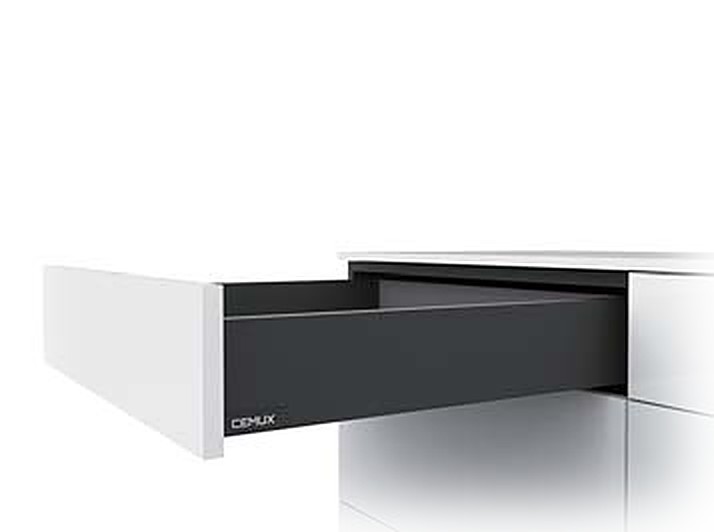

Drawer H84 · H1301

Slim wall
Soft-close
Full extension
84 mm drawer height

5 more specs

±2 mm up & down adjustment
±1.5 mm left & right adjustment
Length from 270–550 mm
100,000 cycles at 40 kg loading
Loading capacity 40 kg

Order information for Drawer H84 (H1301)
NL (mm)	White	Grey	Package
270	–	H1301-270G	6 sets
300	–	H1301-300G	6 sets
350	–	H1301-350G	6 sets
400	–	H1301-400G	6 sets
450	H1301-450W	H1301-450G	6 sets
500	H1301-500W	H1301-500G	6 sets
550	–	–	6 sets

H box

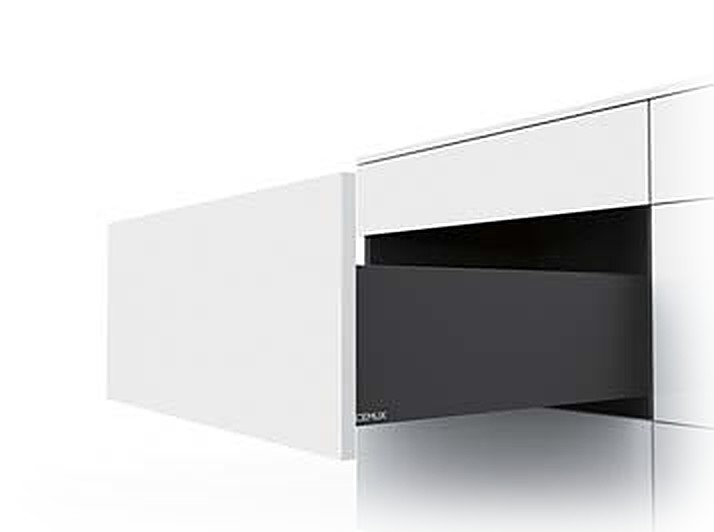

Drawer H167 · H1303

Slim wall
Soft-close
Full extension
167 mm drawer height

5 more specs

±2 mm up & down adjustment
±1.5 mm left & right adjustment
Length from 270–550 mm
100,000 cycles at 40 kg loading
Loading capacity 40 kg

Order information for Drawer H167 (H1303)
NL (mm)	White	Grey	Package
270	–	–	5 sets
300	–	–	5 sets
350	–	H1303-350G	5 sets
400	–	H1303-400G	5 sets
450	–	H1303-450G	5 sets
500	–	H1303-500G	5 sets
550	–	–	5 sets

H box

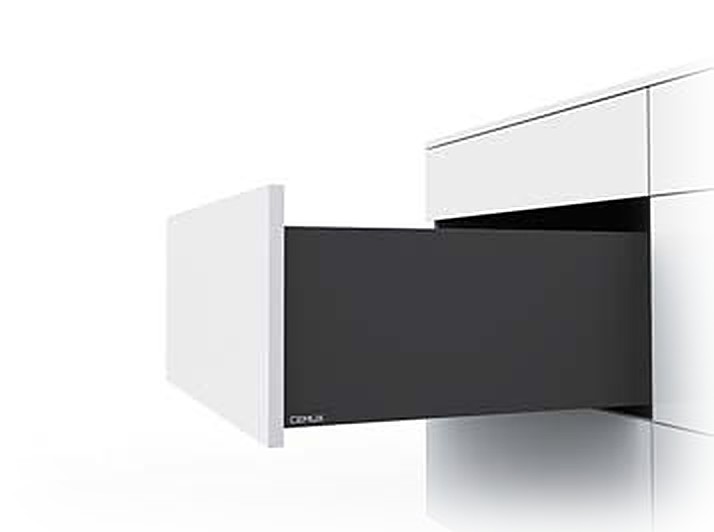

Drawer H199 · H1304

Slim wall
Soft-close
Full extension
199 mm drawer height

5 more specs

±2 mm up & down adjustment
±1.5 mm left & right adjustment
Length from 270–550 mm
100,000 cycles at 40 kg loading
Loading capacity 40 kg

Order information for Drawer H199 (H1304)
NL (mm)	White	Grey	Package
270	–	–	4 sets
300	–	–	4 sets
350	–	–	4 sets
400	–	H1304-400G	4 sets
450	–	H1304-450G	4 sets
500	H1304-500W	H1304-500G	4 sets
550	–	–	4 sets

H box

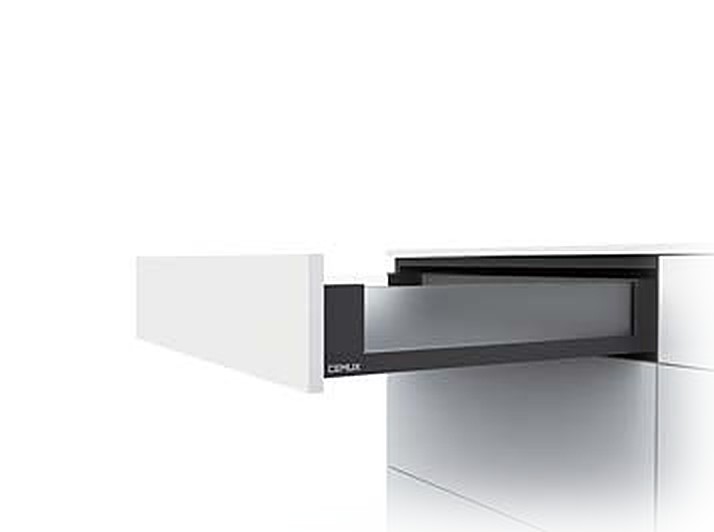

Drawer glass side H84 · H1311

Slim glass wall
Soft-close
Full extension
84 mm drawer height

5 more specs

±2 mm up & down adjustment
±1.5 mm left & right adjustment
Length from 350–550 mm
100,000 cycles at 40 kg loading
Loading capacity 40 kg

Order information for Drawer glass side H84 (H1311)
NL (mm)	White	Grey	Package
270	–	–	6 sets
300	–	–	6 sets
350	–	–	6 sets
400	–	–	6 sets
450	–	H1311-450G	6 sets
500	–	H1311-500G	6 sets
550	–	–	6 sets

H box

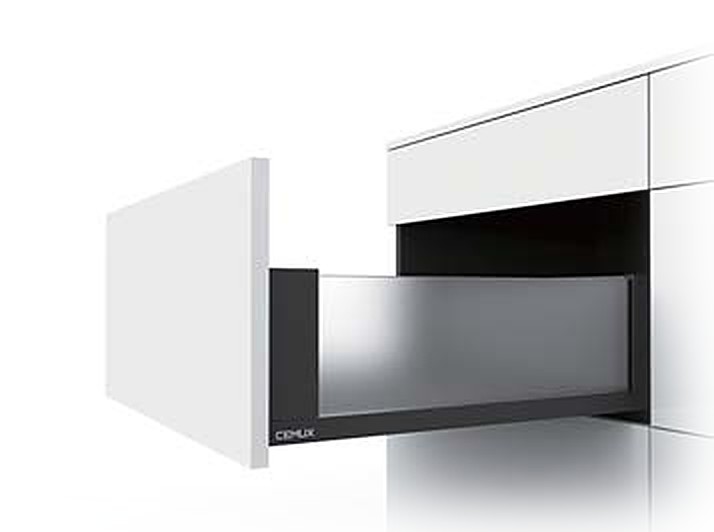

Drawer glass side H167 · H1313

Slim glass wall
Soft-close
Full extension
167 mm drawer height

5 more specs

±2 mm up & down adjustment
±1.5 mm left & right adjustment
Length from 350–550 mm
100,000 cycles at 40 kg loading
Loading capacity 40 kg

Order information for Drawer glass side H167 (H1313)
NL (mm)	White	Grey	Package
270	–	–	6 sets
300	–	–	6 sets
350	–	–	6 sets
400	–	–	6 sets
450	–	H1313-450G	6 sets
500	–	H1313-500G	6 sets
550	–	–	6 sets

H box

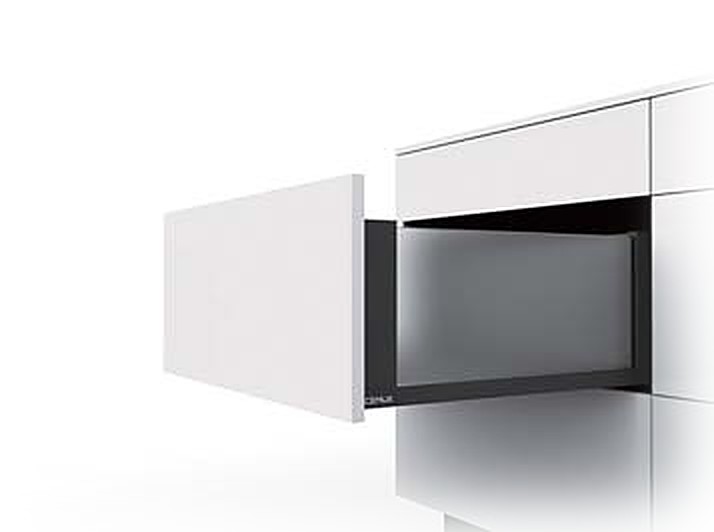

Drawer glass side H199 · H1314

Slim glass wall
Soft-close
Full extension
199 mm drawer height

5 more specs

±2 mm up & down adjustment
±1.5 mm left & right adjustment
Length from 350–550 mm
100,000 cycles at 40 kg loading
Loading capacity 40 kg

Order information for Drawer glass side H199 (H1314)
NL (mm)	White	Grey	Package
270	–	–	6 sets
300	–	–	6 sets
350	–	–	6 sets
400	–	–	6 sets
450	–	H1314-450G	6 sets
500	–	H1314-500G	6 sets
550	–	–	6 sets

Inset accessories

A box inset drawer accessories for H84 · AL321200G

Front panel, normal aluminium — DIY cut: length = LW − 90
Inset drawer front bracket left/right

Order information for A box inset drawer accessories for H84 (AL321200G)
Part	L (mm)	Grey
Front panel – normal aluminium	1200	AL321200G
Inset front bracket L/R (H84)	–	AH320101G

Inset accessories

A box inset drawer accessories for H199 · AF320401G

Front panel: DIY cut length = LW − 90
Front square rail: DIY cut length = LW − 92
Bracket for inset drawer H199 with square rail

Order information for A box inset drawer accessories for H199 (AF320401G)
Part	L (mm)	Grey
Front panel – normal aluminium	1200	AL321200G
Inset front bracket L/R (H199 square rail)	–	AF320401G
Front square rail	1200	HF321200G

Inset accessories

H box inset drawer accessories for H84 · H1321200G

Front panel, normal aluminium — DIY cut: length = LW − 100

Order information for H box inset drawer accessories for H84 (H1321200G)
Part	L (mm)	Grey
Front panel – normal aluminium	1200	H1321200G
Inset front bracket L/R	–	H130200G

Inset accessories

H box inset front panel and H54 glass for drawer H84 · H1331200G

Front panel, low aluminium — DIY cut: length = LW − 100
Front H54 glass panel, frosted

Order information for H box inset front panel and H54 glass for drawer H84 (H1331200G)
Part	Size	Code
Front panel – low aluminium (grey)	L 1200	H1331200G
Inset front bracket L/R (grey)	–	H131200G
H54 glass panel, frosted	KB 600	H1410476F
H54 glass panel, frosted	KB 800	H1410676F
H54 glass panel, frosted	KB 900	H1410776F

Inset accessories

H box inset front panel and rail for drawer H167 · H130500G

Front panel: DIY cut length = LW − 100
Front square rail: DIY cut length = LW − 88

Order information for H box inset front panel and rail for drawer H167 (H130500G)
Part	L (mm)	Grey
Front panel – normal aluminium	1200	H1321200G
Inset front bracket L/R	–	H130500G
Front square rail	1200	HF321200G

Inset accessories

H box inset front panel and rail for drawer H199 · H130800G

Front panel: DIY cut length = LW − 100
Front square rail: DIY cut length = LW − 88

Order information for H box inset front panel and rail for drawer H199 (H130800G)
Part	L (mm)	Grey
Front panel – normal aluminium	1200	H1321200G
Inset front bracket L/R	–	H130800G
Front square rail	1200	HF321200G

Inset accessories

H box inset front panel and H102 glass for glass side H199 · H130600G

Front panel, low aluminium — DIY cut: length = LW − 100
Front H102 glass panel, frosted

Order information for H box inset front panel and H102 glass for glass side H199 (H130600G)
Part	Size	Code
Front panel – low aluminium (grey)	L 1200	H1331200G
Inset front bracket L/R (grey)	–	H130600G
H102 glass panel, frosted	KB 600	H1390476F
H102 glass panel, frosted	KB 800	H1390676F
H102 glass panel, frosted	KB 900	H1390776F

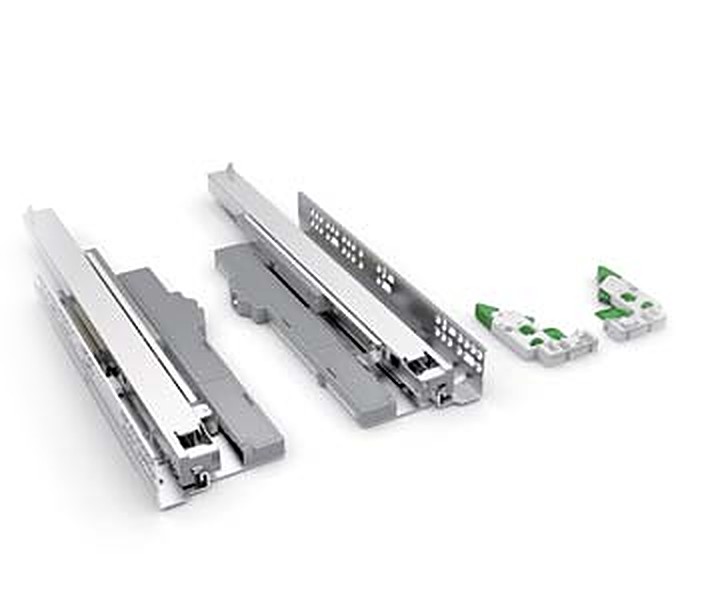

Pair of R113 concealed undermount drawer slides in galvanised steel with green locking devices

Runners

R drawer slide R113 (synchronised motion) · R113

Soft-close & push-open
Full extension
Galvanised sheet
Loading capacity 25 kg

5 more specs

Length 350–700 mm
1–3 mm height adjustment
±2 mm right/left adjustment
1–5 mm depth adjustment on slide
For 16 mm drawer sides

Order information for R drawer slide R113 (synchronised motion) (R113)
NL (mm)	Item no.	Package
350	R113-350	6 sets
400	R113-400	6 sets
450	R113-450	6 sets
500	R113-500	6 sets
550	R113-550	6 sets
600	R113-600	6 sets
650	R113-650	6 sets
700	R113-700	6 sets
Stabilisation set 600 (cut to size)	R1130600	6 sets

Package includes left & right slides and locking devices. For drawers ≥1200 mm wide, add the R1130600 synchronisation rail. For 18 mm drawers, contact us.

Runners

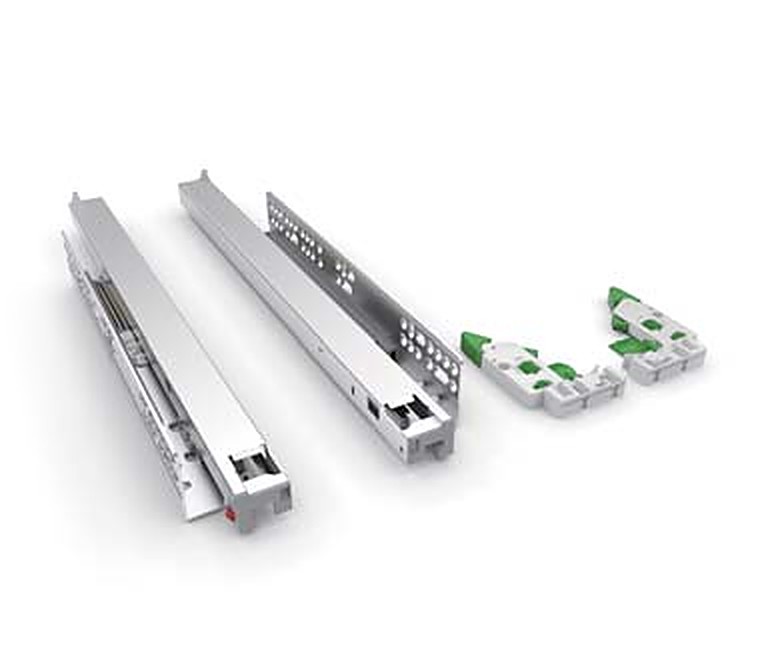

R drawer slide R213 (synchronised motion) · R213

Soft-close
Full extension
Galvanised sheet
Loading capacity 25 kg

5 more specs

Length 250–700 mm
1–3 mm height adjustment
±2 mm right/left adjustment
1–5 mm depth adjustment on slide
For 16 mm drawer sides

Order information for R drawer slide R213 (synchronised motion) (R213)
NL (mm)	Item no.	Package
250	R213-250	10 sets
300	R213-300	10 sets
350	R213-350	10 sets
400	R213-400	10 sets
450	R213-450	10 sets
500	R213-500	10 sets
550	R213-550	10 sets
600	R213-600	10 sets
650	R213-650	10 sets
700	R213-700	10 sets

Package includes left & right slides and locking devices. For 18 mm drawers, contact us.

Runners

R drawer slide R312 (synchronised motion) · R312

Push-open
Full extension
Galvanised sheet
Loading capacity 25 kg

4 more specs

Length 250–700 mm
1–3 mm height adjustment
±2 mm right/left adjustment
2-D adjustment, 16 mm drawer

Order information for R drawer slide R312 (synchronised motion) (R312)
NL (mm)	Item no.	Package
250	R312-250	10 sets
300	R312-300	10 sets
350	R312-350	10 sets
400	R312-400	10 sets
450	R312-450	10 sets
500	R312-500	10 sets
550	R312-550	10 sets
600	R312-600	10 sets
650	R312-650	10 sets
700	R312-700	10 sets

Package includes left & right slides and locking devices. For 18 mm drawers, contact us.

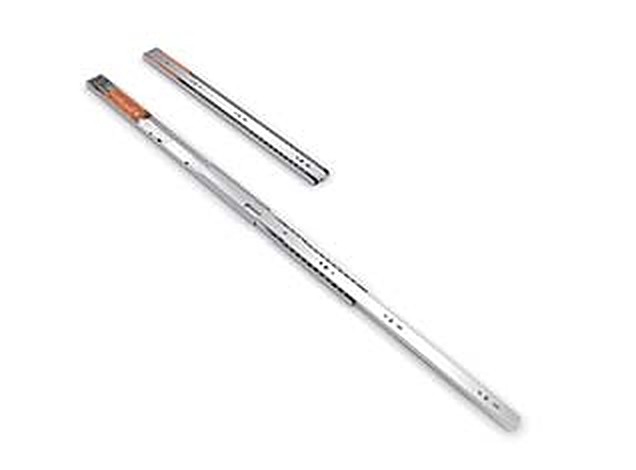

45 mm full-extension ball-bearing drawer slide in zinc-plated cold-rolled steel

Runners

BB01 ball-bearing slide, soft-close & push-open · BB01

Cold-rolled steel
Slide width 45 mm
Slide thickness 12.7 mm
Max load 30 kg

2 more specs

Length 250–750 mm
Material 1.5 × 1.2 × 1.2 mm

Order information for BB01 ball-bearing slide, soft-close & push-open (BB01)
NL (mm)	Item no.	Package
250	BB01-250	15 sets
300	BB01-300	15 sets
350	BB01-350	15 sets
400	BB01-400	15 sets
450	BB01-450	15 sets
500	BB01-500	15 sets
550	BB01-550	15 sets
600	BB01-600	15 sets
650	BB01-650	15 sets
700	BB01-700	15 sets
750	BB01-750	15 sets

Package includes left & right drawer slide.

Runners

BB02 ball-bearing slide, soft-close · BB02

Cold-rolled steel
Slide width 45 mm
Slide thickness 12.7 mm
Max load 30 kg

1 more spec

Length 250–700 mm

Order information for BB02 ball-bearing slide, soft-close (BB02)
NL (mm)	Item no.	Package
250	BB02-250	15 sets
300	BB02-300	15 sets
350	BB02-350	15 sets
400	BB02-400	15 sets
450	BB02-450	15 sets
500	BB02-500	15 sets
550	BB02-550	15 sets
600	BB02-600	15 sets
650	BB02-650	15 sets
700	BB02-700	15 sets

Package includes left & right drawer slide.

Runners

BB03 ball-bearing slide, push-open · BB03

Cold-rolled steel
Slide width 45 mm
Slide thickness 12.7 mm
Max load 30 kg

1 more spec

Length 250–700 mm

Order information for BB03 ball-bearing slide, push-open (BB03)
NL (mm)	Item no.	Package
250	BB03-250	15 sets
300	BB03-300	15 sets
350	BB03-350	15 sets
400	BB03-400	15 sets
450	BB03-450	15 sets
500	BB03-500	15 sets
550	BB03-550	15 sets
600	BB03-600	15 sets
650	BB03-650	15 sets
700	BB03-700	15 sets

Package includes left & right drawer slide.

Runners

BB04 ball-bearing slide, full extension · BB04

Cold-rolled steel
Slide width 45 mm
Slide thickness 12.7 mm
Max load 30 kg

1 more spec

Length 250–700 mm

Order information for BB04 ball-bearing slide, full extension (BB04)
NL (mm)	Item no.	Package
250	BB04-250	15 sets
300	BB04-300	15 sets
350	BB04-350	15 sets
400	BB04-400	15 sets
450	BB04-450	15 sets
500	BB04-500	15 sets
550	BB04-550	15 sets
600	BB04-600	15 sets
650	BB04-650	15 sets
700	BB04-700	15 sets

Package includes left & right drawer slide.

Runners

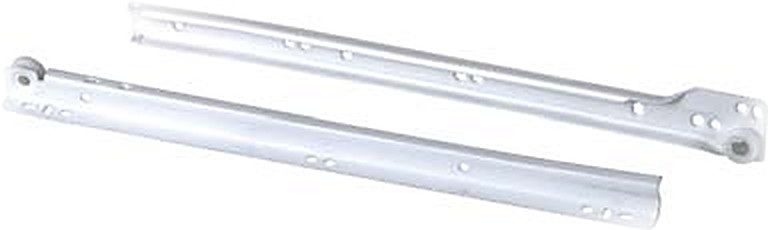

Bottom mount single extension runners · DRAWERRUNCH1917

25 kg capacity
Epoxy powder coated
Single extension
Length 250–600 mm

Order information for Bottom mount single extension runners (DRAWERRUNCH1917)
NL (mm)	Item no.
250	DRAWERRUNCH1917
300	DRAWERRUNCH1918
350	DRAWERRUNCH1919
400	DRAWERRUNCH1920
450	DRAWERRUNCH1921
500	DRAWERRUNCH1922
550	DRAWERRUNCH1923
600	DRAWERRUNCH1924

Package includes left & right drawer slide.

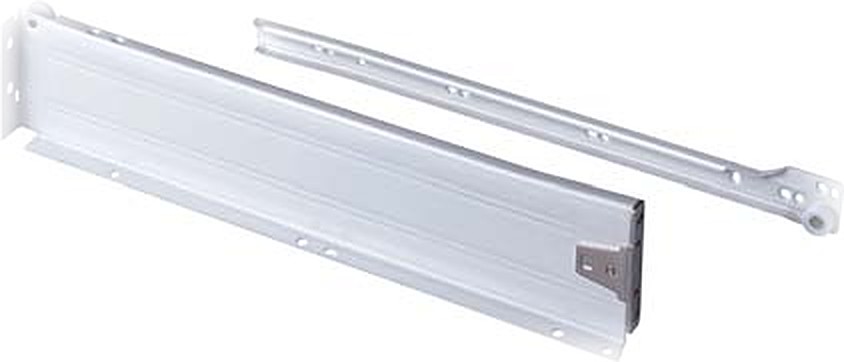

Meta box white steel drawer side with bottom-mount single-extension runner

Runners

Meta box drawer · Meta box

25 kg capacity
Bottom mount
Single extension
86, 118 and 150 mm heights

Order information for Meta box drawer (Meta box)
NL (mm)	Item no.	Height
450	DRAWERRUNCH1917	86 mm
450	DRAWERRUNCH1918	118 mm
450	DRAWERRUNCH1919	150 mm
500	DRAWERRUNCH1920	150 mm

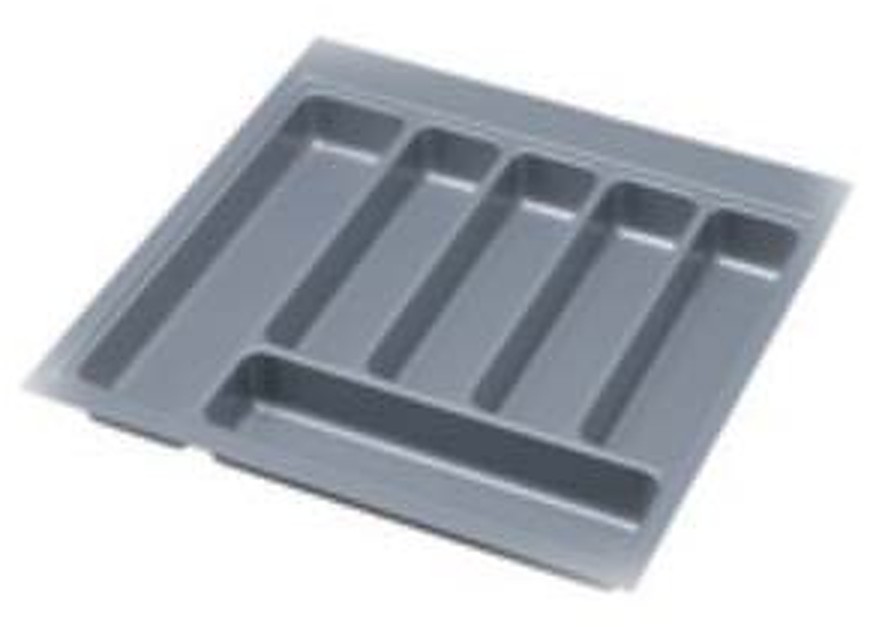

Grey injection-moulded plastic cutlery insert tray with five compartments

Drawer accessories

Plastic cutlery inserts · ECTANCUT

Injection-moulded, top-quality plastic
Sizes for 300–1000 mm cabinets

Order information for Plastic cutlery inserts (ECTANCUT)
KB (mm)	Item no.
300	ECTANCUT300
400	ECTANCUT400
450	ECTANCUT450
500	ECTANCUT500
600	ECTANCUT600
800	ECTANCUT800
900	ECTANCUT900
1000	ECTANCUT1000

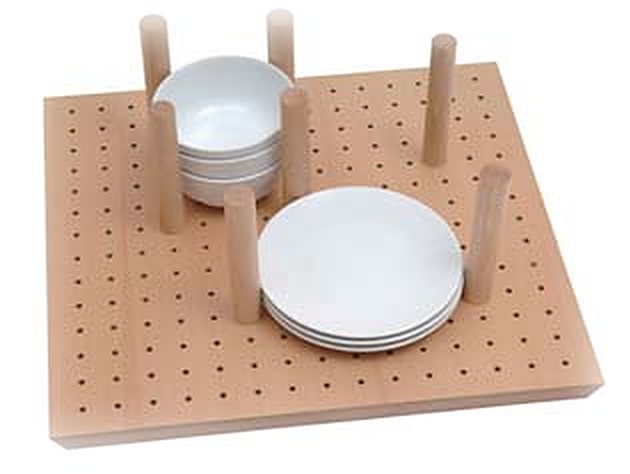

Beech peg board drawer organiser holding white plates and bowls with wooden pegs

Drawer accessories

Beech peg board · BEECHBOARD

Solid beech
Can be cut to any size
Each set includes 14 pegs

Order information for Beech peg board (BEECHBOARD)
NL (mm)	Item no.
800	BEECHBOARD1606
900	BEECHBOARD1604
1000	BEECHBOARD1605

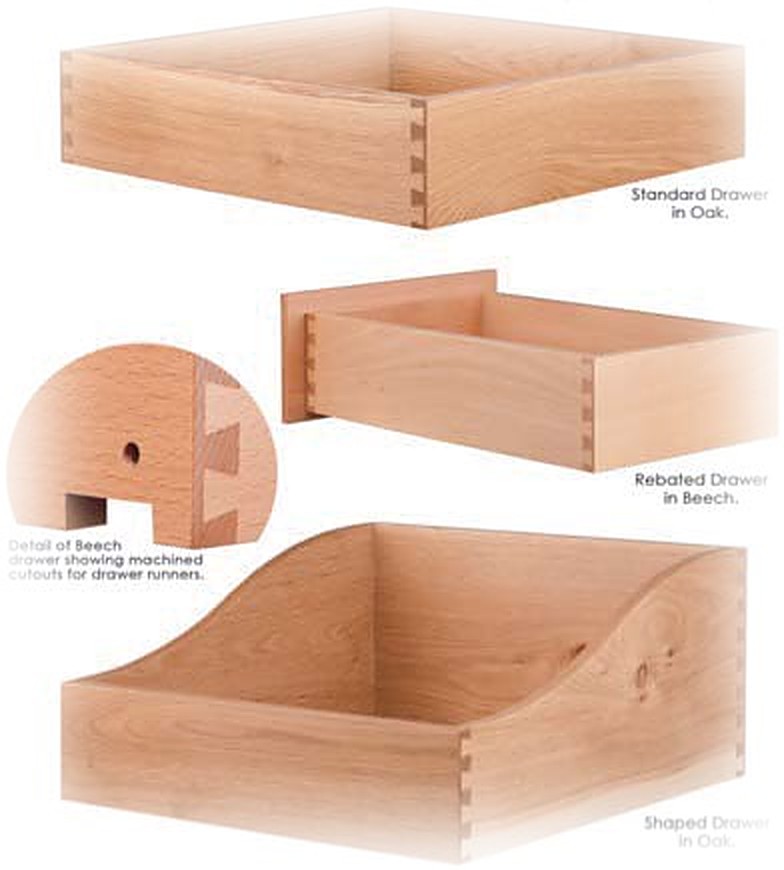

Solid wood dovetail drawers: standard drawer in oak, rebated drawer in beech and shaped drawer in oak, with runner cut-out detail

Drawer accessories

Exclusive dovetail drawer range · Dovetail

Expertly machined dovetail drawers in oak, beech & walnut
Dovetailed joints on all four corners
Available in standard and inframe sizes
Machined cut-outs for drawer runners

Order information for Exclusive dovetail drawer range (Dovetail)
Style	Timber shown
Standard drawer	Oak
Rebated drawer	Beech
Shaped drawer	Oak

Made to order — send us your sizes for a quote.

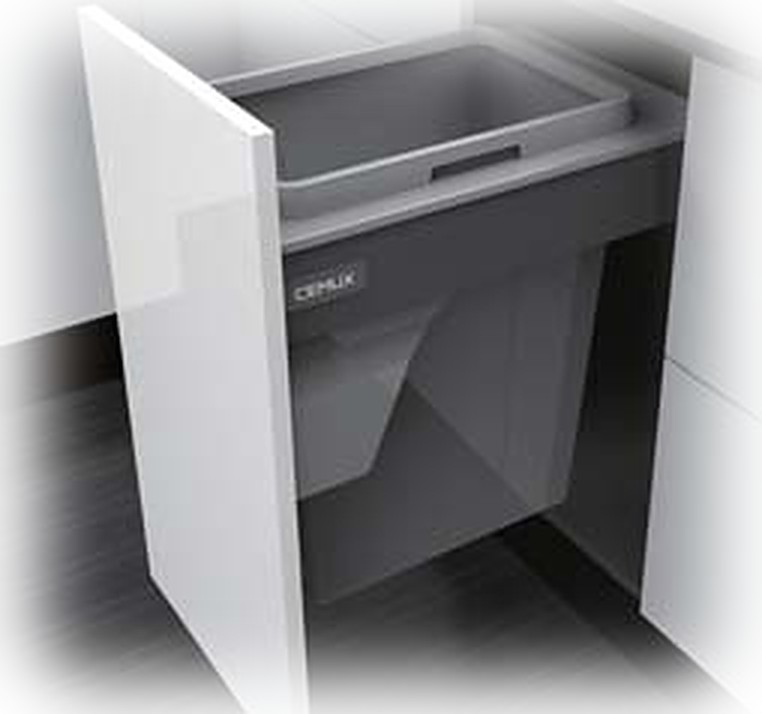

Grey 35 litre pull-out waste bin fitted inside a 400 mm drawer

Waste & laundry bins

L bins waste system 400 – 35 L · MWBD40035G

For 400 mm wide cabinet drawer
For 500 mm deep drawer
1 plastic waste bin – 35 L
Grey

1 more spec

570 mm high, 362–368 mm wide, 506 mm deep

Order information for L bins waste system 400 – 35 L (MWBD40035G)
Item no.	Cabinet	Capacity
MWBD40035G	400 mm	1 × 35 L

Requires a 500 mm deep A box or H box drawer.

Waste & laundry bins

L bins waste system 450 – 2 × 27 L · MWBD45054G

For 450 mm wide cabinet drawer
For 500 mm deep drawer
2 plastic waste bins – 27 L × 2
Grey

1 more spec

570 mm high, 412–418 mm wide, 506 mm deep

Order information for L bins waste system 450 – 2 × 27 L (MWBD45054G)
Item no.	Cabinet	Capacity
MWBD45054G	450 mm	2 × 27 L

Requires a 500 mm deep A box or H box drawer.

Waste & laundry bins

L bins waste system 600 – 2 × 35 L · MWBD60070G

For 600 mm wide cabinet drawer
For 500 mm deep drawer
2 plastic waste bins – 35 L × 2
Grey

1 more spec

570 mm high, 562–568 mm wide, 506 mm deep

Order information for L bins waste system 600 – 2 × 35 L (MWBD60070G)
Item no.	Cabinet	Capacity
MWBD60070G	600 mm	2 × 35 L

Requires a 500 mm deep A box or H box drawer.

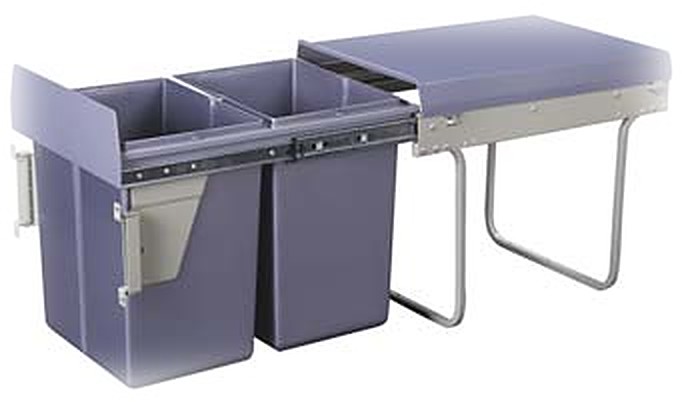

Grey pull-out twin waste bin, two 20 litre containers on a runner frame

Waste & laundry bins

Pull-out twin bin 400 – 2 × 20 L · MWBB40040SG

For 400 mm wide cabinet
For 495 mm internal-depth drawer
2 plastic waste bins – 20 L × 2
Grey

1 more spec

430 mm high, 342 mm wide, 490 mm deep

Order information for Pull-out twin bin 400 – 2 × 20 L (MWBB40040SG)
Item no.	Cabinet	Capacity
MWBB40040SG	400 mm	2 × 20 L

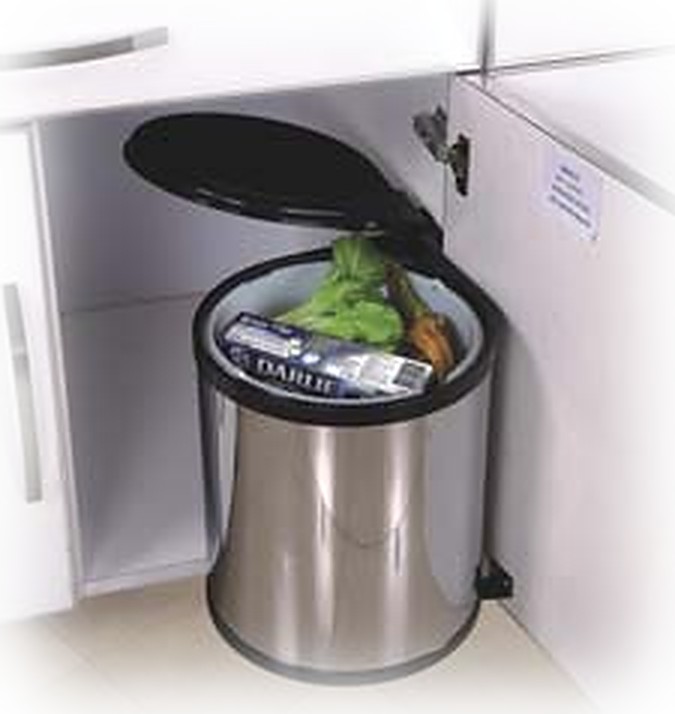

Round chrome-polished 14 litre door-mounted bin with lid inside a white cabinet

Waste & laundry bins

Chrome door bin – 14 L · MWBN40014G

For 400 mm wide cabinet
1 plastic waste bin – 14 L
Chrome polish
320 mm high, 360 mm wide, 320 mm deep

Order information for Chrome door bin – 14 L (MWBN40014G)
Item no.	Cabinet	Capacity
MWBN40014G	400 mm	1 × 14 L

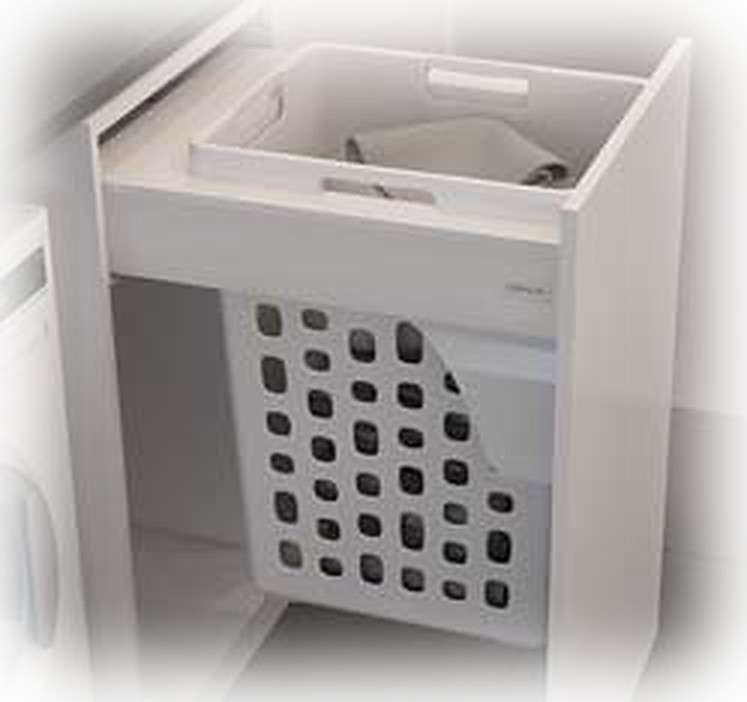

White ventilated 48 litre pull-out laundry basket in a 450 mm drawer

Waste & laundry bins

Laundry bin 450 – 48 L · MLBD45048W

For 450 mm wide cabinet drawer
For 500 mm deep drawer
1 bin – 48 L
White

1 more spec

545 mm high, 412–418 mm wide, 506 mm deep

Order information for Laundry bin 450 – 48 L (MLBD45048W)
Item no.	Cabinet	Capacity
MLBD45048W	450 mm	1 × 48 L

Requires a 500 mm deep A box or H box drawer.

Waste & laundry bins

Laundry bin 600 – 2 × 35 L · MLBD60070W

For 600 mm wide cabinet drawer
For 500 mm deep drawer
2 bins – 35 L × 2
White & blue

1 more spec

570 mm high, 562–568 mm wide, 506 mm deep

Order information for Laundry bin 600 – 2 × 35 L (MLBD60070W)
Item no.	Cabinet	Capacity
MLBD60070W	600 mm	2 × 35 L

Requires a 500 mm deep A box or H box drawer.

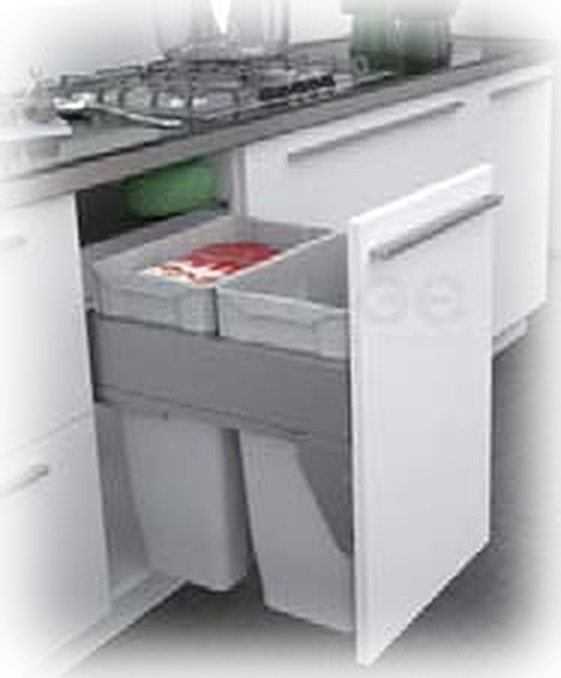

SIGE grey pull-out waste bin with integrated lid on soft-close undermount runners in a white kitchen

Waste & laundry bins

SIGE pull-out bins with integrated lid · SIGE…EURO

Integrated lid
Soft-close full-extension undermounted runners
400 / 450 / 500 / 600 mm cabinets

Order information for SIGE pull-out bins with integrated lid (SIGE…EURO)
Item no.	Cabinet	Capacity
SIGE400EURO	400 mm	2 × 20 L
SIGE450EURO	450 mm	2 × 35 L
SIGE500EURO	500 mm	2 × 35 L
SIGE600EURO	600 mm	2 × 25 L + 2 × 17 L

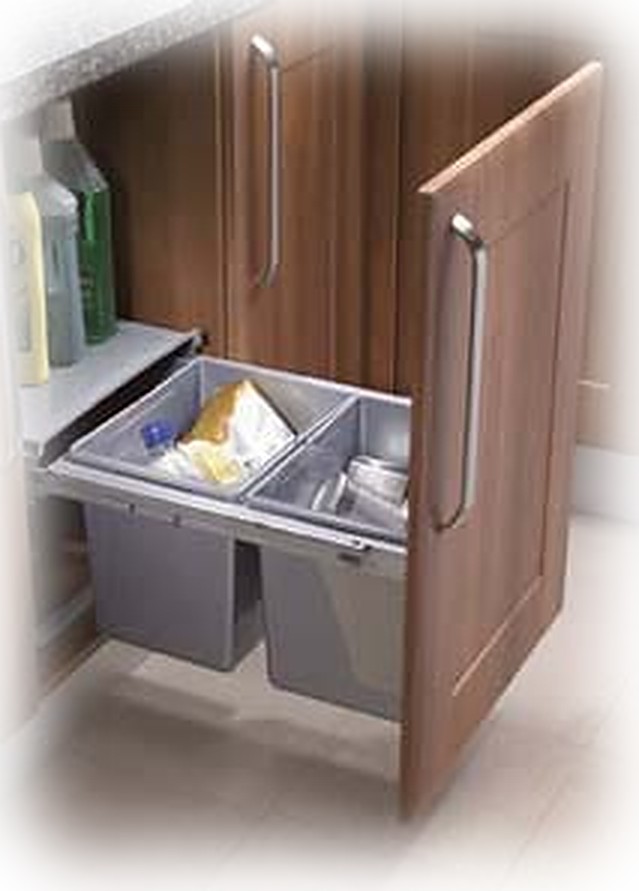

Twin grey 15 litre under-sink pull-out bins behind a timber kitchen door

Waste & laundry bins

Under-sink bin 450 – 2 × 15 L · ECBIN18

For 450 mm wide cabinet
2 plastic waste bins – 15 L × 2
Independent or door mounting
Soft-closing full-extension heavy-duty runners

1 more spec

490 mm deep, 313 mm high

Order information for Under-sink bin 450 – 2 × 15 L (ECBIN18)
Item no.	Cabinet	Capacity
ECBIN18	450 mm	2 × 15 L

Systems at a glance

Six families, one supplier

3 product lines

A box

Contempo-wall Cemux drawers in 84 and 199 mm heights, with rail or glass-panel options.

6 product lines

H box

Slim-wall Cemux drawers in 84, 167 and 199 mm heights, solid or glass-sided.

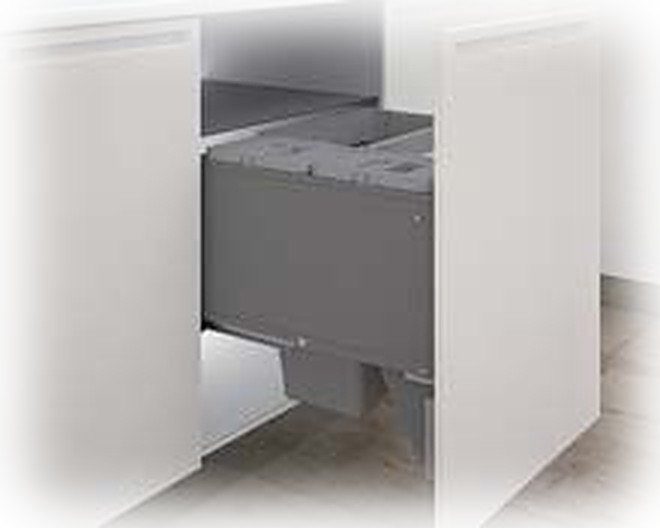

Inset drawer fitted behind a cabinet door

7 product lines

Inset accessories

Aluminium front panels, brackets, square rails and frosted glass for inset drawers.

R113 concealed synchronised undermount drawer slides

9 product lines

Runners

Concealed synchronised slides, 45 mm ball-bearing slides and bottom-mount runners.

3 product lines

Drawer accessories

Cutlery inserts, beech peg boards and exclusive dovetail drawers.

9 product lines

Waste & laundry bins

Pull-out recycling, laundry, door and under-sink bins.

40 kg

Drawer loading capacity

100k

Tested opening cycles

270–550

Drawer lengths (mm)

84–199

Drawer heights (mm)

Measuring guide

Measuring terms & cutting rules

LW: Internal cabinet width
L: Length
SKL: Length of drawer
X: Thickness of door
NL: Nominal length
KB: Cabinet width
LT: Minimum installation depth
FEC: Front edge of cabinet

Inset drawer front panels

Panels and rails ship at 1200 mm for DIY cutting to the internal cabinet width (LW).

Cutting deductions for inset drawer front panels
Part	A box	H box
Front panel	LW − 90	LW − 100
Square rail	LW − 92	LW − 88

Downloads

LHS Essentials catalogue (PDF) Check stock on the Trade Portal

Inside the drawer

Dovetail drawers, bins & organisers

Finish the job with expertly machined solid-wood dovetail drawers in oak, beech and walnut, and pull-out recycling and laundry bins sized for 500 mm deep A box and H box drawers.

Exclusive dovetail drawer range: standard drawer in oak, rebated drawer in beech and shaped drawer in oak, with detail of machined runner cut-outs — **Exclusive dovetail drawers** — dovetailed on all four corners, standard and inframe sizes.

White 48 litre ventilated pull-out laundry bin MLBD45048W in a 450 mm drawer — **L bins system** — waste bins from 14 L to 2 × 35 L, laundry bins up to 70 L.

Frequently Asked Questions

Both are soft-close, full-extension drawer systems rated to 40 kg and 100,000 cycles. A box uses the Contempo wall profile in 84 and 199 mm heights; H box uses a slimmer wall in 84, 167 and 199 mm heights and offers more glass-sided options.

The Cetech-Move runner is rated to 40 kg (65 kg version available) and tested to 100,000 cycles at 40 kg to EN 15338 and BS6222-2:2009 + A1:2017 level H (cutlery drawer). The range carries the LGA Qualitäts-Zertifikat.

NL is the nominal length of the drawer. Pick the longest NL that fits the internal depth of your cabinet — most 560–580 mm deep base units take a 500 mm drawer. Drawers are stocked from 270 to 550 mm.

Front panels ship at 1200 mm for DIY cutting. For A box, cut to LW − 90 mm (square rail LW − 92). For H box, cut to LW − 100 mm (square rail LW − 88), where LW is the internal cabinet width.

All three are synchronised, full-extension 25 kg slides for 16 mm drawer sides. R113 combines soft-close and push-open, R213 is soft-close, and R312 is push-open for handleless kitchens. For drawers 1200 mm or wider add the R1130600 stabilisation set.

The MWBD waste bins and MLBD laundry bins are designed to drop into a 500 mm deep Cemux A box or H box drawer in 400, 450 or 600 mm cabinets.

Yes. Light Hardware Supplies is a family-run trade wholesaler in Kilkeary, Nenagh, Co. Tipperary, delivering nationwide to kitchen manufacturers, joiners and trade suppliers.

Trade pricing & stock

Send us your cutting list or item codes. We will confirm stock, price your drawers, runners and accessories, and deliver nationwide from Nenagh.

Submit An Enquiry +353 (0) 67 31471

Explore Our Drawer Systems & Runners

A drawer runner built for 100,000 openings

Find any drawer SKU in seconds

Contempo drawer side H84 · A3201

Contempo drawer side with square rail H199 · A3204

Contempo drawer side with glass panel H199 · A3244

Drawer H84 · H1301

Drawer H167 · H1303

Drawer H199 · H1304

Drawer glass side H84 · H1311

Drawer glass side H167 · H1313

Drawer glass side H199 · H1314

A box inset drawer accessories for H84 · AL321200G

A box inset drawer accessories for H199 · AF320401G

H box inset drawer accessories for H84 · H1321200G

H box inset front panel and H54 glass for drawer H84 · H1331200G

H box inset front panel and rail for drawer H167 · H130500G

H box inset front panel and rail for drawer H199 · H130800G

H box inset front panel and H102 glass for glass side H199 · H130600G

R drawer slide R113 (synchronised motion) · R113

R drawer slide R213 (synchronised motion) · R213

R drawer slide R312 (synchronised motion) · R312

BB01 ball-bearing slide, soft-close & push-open · BB01

BB02 ball-bearing slide, soft-close · BB02

BB03 ball-bearing slide, push-open · BB03

BB04 ball-bearing slide, full extension · BB04

Bottom mount single extension runners · DRAWERRUNCH1917

Meta box drawer · Meta box

Plastic cutlery inserts · ECTANCUT

Beech peg board · BEECHBOARD

Exclusive dovetail drawer range · Dovetail

L bins waste system 400 – 35 L · MWBD40035G

L bins waste system 450 – 2 × 27 L · MWBD45054G

L bins waste system 600 – 2 × 35 L · MWBD60070G

Pull-out twin bin 400 – 2 × 20 L · MWBB40040SG

Chrome door bin – 14 L · MWBN40014G

Laundry bin 450 – 48 L · MLBD45048W

Laundry bin 600 – 2 × 35 L · MLBD60070W

SIGE pull-out bins with integrated lid · SIGE…EURO

Under-sink bin 450 – 2 × 15 L · ECBIN18

Six families, one supplier

A box

H box

Inset accessories

Runners

Drawer accessories

Waste & laundry bins

Measuring terms & cutting rules

Inset drawer front panels

Downloads

Dovetail drawers, bins & organisers

Frequently Asked Questions

What is the difference between Cemux A box and H box drawers?

What load and cycle rating do Cemux drawers carry?

How do I choose the drawer length (NL)?

How do I cut inset drawer front panels?

Which concealed runner should I use: R113, R213 or R312?

Do the L bins fit any drawer?

Do you deliver drawer systems across Ireland?

Trade pricing & stock
